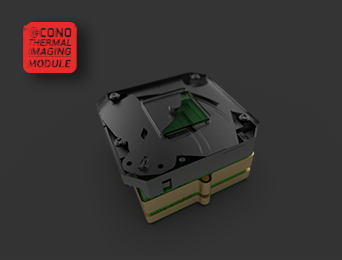

视拓光电(conotech)axe系列红外热像机芯具有无与伦比的特性和性能，先进的wdr宽动态图像处理技术，多种场景模式可选，能够满足不同的应用环境和需求。由于640和384的机械和电气功能相同，集成商在使用不同的热像集成时可以直接相互兼容，且在镜头的选用也有通用之处。axe系列机芯系列体积小，功耗低。是无人机，热像手持设备，监控等红外集成设备的理想之选。
| detector | |
| resoltuion | 384x288 |
| pitch | 17um |
| spectral range | 8~14um |
| netd | less than 50mk |
| image processing | |
| digital zoom palatte | x2,x4,pip |
| palette | can be customized |
| image flip | horizontal/vertical/diagonal/original image (4 types) |
| start up time | less than 5 seconds |
| start up image | can be customized |
| image enhancement | dde |
| image presentation | |
| analog video output | pal/ntsc |
| digital video output | y16/y8/bt.656 optional (default y8) |
| electric interface | |
| data interface | 20 pin data interface |
| ir module control | |
| communication method | rs232 |
| baud rate | 115200 |
| power supply | |
| required voltage | 4-12v dc |
| power consumption | less than 1.2w including oled less than 1.0w excluding oled |
| environmental compatibility | |
| operating temperature range | -40degree to 60 degree |
| storage temperature range | -45 degree to 85 degree |
| pysical characteristics | |
| size | 30x30x20cm |
| weight | 40g excluding lens |
